Horizontal Air Exchanger

Enchoy rotary energy recovery ventilator reliably provides a continuous supply of fresh air for the entire house-fully automated, around the clock and entirely without draughts. And there's an added special benefit: all dirt particles, pollutants, dust and pollen are filtered out. Noise and insects are kept out, too.

Used air and odours are extracted by the system far more reliably than when ventilation occurs through windows. In addition, the system recovers valuable heat that would be lost through open windows.

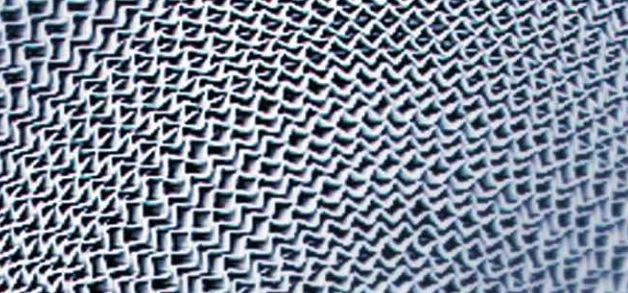

Enchoy molecular sieve coating rotor technology controls heat and humidity in the house.
This rotary energy recovery unit regains heat from the extract air. But it also recovers humidity – something that few conventional systems are capable of doing. The main contributor to this advantage is molecular sieve coating rotor.

With its specially-developed sorption coating, the enthalpy recovery unit takes up heat energy and water vapour from the extract air. When needed, these are transferred to the supply air in the required quantity and returned to the interior, creating a pleasant indoor climate. This heat and humidity recovery technology makes Enchoy enthalpy recovery system outstanding efficient. Excellent, conventional systems reach a energy recovery efficiency of around 80%. In comparison, Enchoy molecular sieve coating rotor unit achieves up to more than 96% with its operating concept.

Healthy Fresh Air Comfort

Building heat insulation has become increasingly effective over years. On the one hand, this saves energy. On the other hand, good insulation also prevents the exchange of air that once took place through the permeable building envelope and windows of old houses. Enchoy molecular sieve coating rotor technology handles this air exchange in a controlled and fully automated manner. At the same time, humidity recovery provides the right amount of moisture in the air. This avoids dry room air-often a problem with conventional system.

Pollutants and Noise Stay Outside

An high-efficiency filter removes large particles from the draw in outside air. An additional fine filter cleans the air of pollen, pollutants, fine dust and fungal spores. When the air reaches the interior of the building, it is clean. Stale room air and undesirable substances and odours are removed from the building with the extract air. Because you no longer need to open the windows to obtain fresh air, noise stays outside, too.

The unit is supplied with a multi-function display for automatic control and convenience. Enchoy main control panel can be connected with separated controllers and control independently.

• 3 speed setting (adjustable).
• Children lock.
• Weekly programming operation.
• Display control are connected with the main board in series.
• Filter replacement and fan failure indicator.
• Setting saving and loading.

ERV-H1.0

ERV-H2.0

ERV-H3.0
