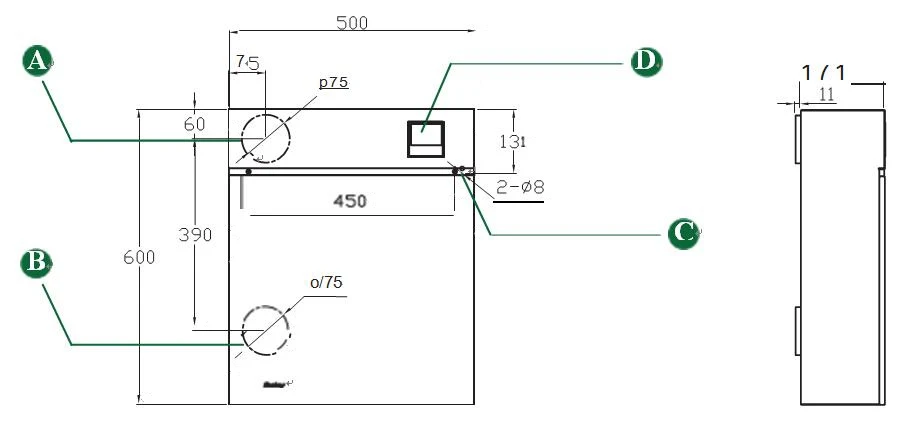

Dimensions (mm)

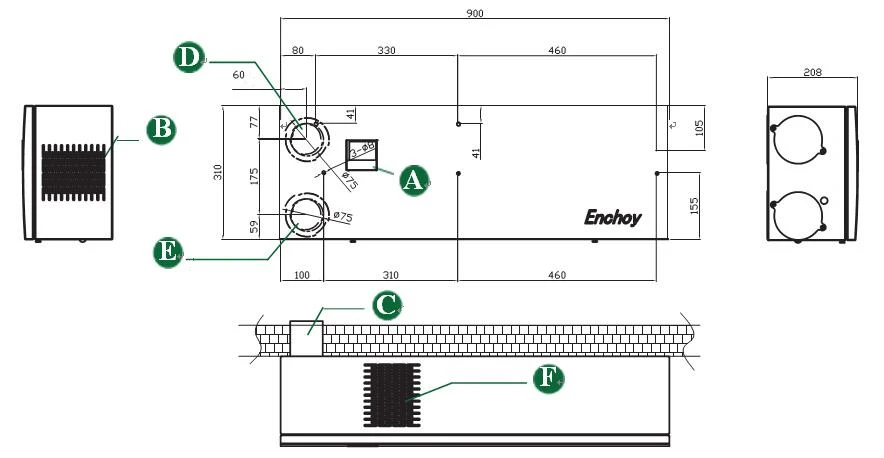

Back Outlet Schematic Diagram

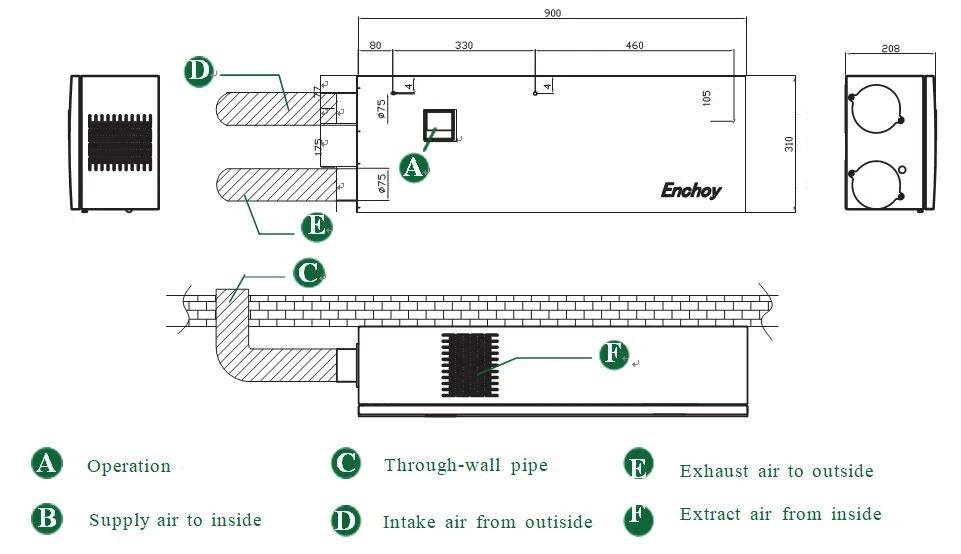

Side Outlet Schematic Diagram
Technical Specifications
|
Model |
Mixed air volume |
Heat exchange efficiency |
Power |
Filter efficiency |
Weight |
Power supply |
Joint pipe on the exterior wall |
Outer size |
Noise |
|
m3/h |
% |
W |
% |
Kg |
V/Hz |
Φmm |
mm |
dB |
|
|
ERU-W1.0 |
40-120 |
76-82 |
31/24/17 |
99 |
20 |
220V/50 |
2X75 |
600×500×171 |
34-42 |
|
ERU-W2.0 |
50-100 |
76-82 |
43/27/21 |
99 |
28 |
220V/50 |
2X75 |
900×310×208 |
34-42 |
De-centralised Heat Recovery Ventilator
Application
Decentralised dual flow heat recovery unit, suitable for wall installation in premises such as offices, waiting rooms and school rooms, up to 30m2.
Specification
White powder coated galvanized steel for high corrosion resistance and high surface finish.
Internal structure: manufactured from motor, filter and an intelligent air valve, with 10 mm rubber foam inside ensures a low noise level and good insulation, reduced sound emissions and maximized air tightness and thermal insulation.
Maintenance free and long-life motors, equipped with automatic thermal overheat protection and low energy consumption.
Backward curve centrifugal impeller, well balanced impeller integrated with motor for a perfect airflow with low noise.

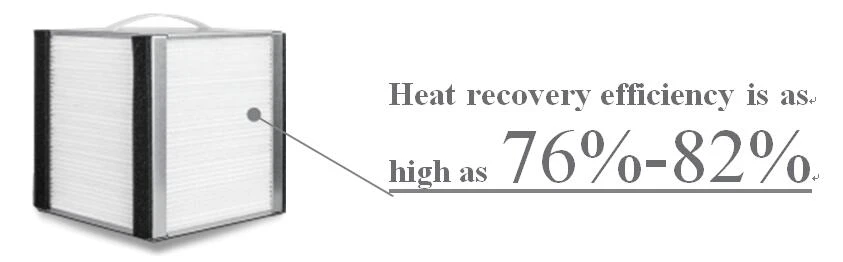

The swirling-typed design improves the heat exchange efficiency because turbulence formed on its surface can promote heat transfer. Thus, it fully plays the advantages of the overall core for heat exchange, low pressure drop and high efficiency, and enables it to display its performance to the fullest.
Features & Benefits
01. Easy installation & money saving
02. Silent operation
03. H Filters
04. Automatic anti-frost protection
05. Certifications
Operation

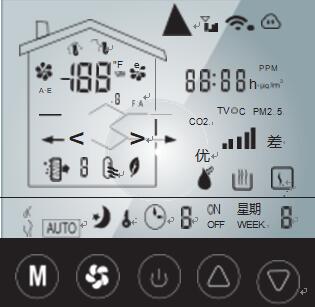

Equipped with separate digital display:
The unit is supplied with a multi-function display for automatic control and convenience, providing:
- Wifi control.
- Weekly programming operation.
- Remote controls are connected with the main board in series.
- Airflow balancing.
- Setting saving and loading.
- Children lock.
The Enchoy heat exchanger has the characteristics of fire prevention and mildew resistance:
▽ Fire Prevention: Level 2 (According to flammability of building thin materials JIS A1322)
▽ Mildew Resistance: No appearance of fungus after 4 weeks (According to JIS Z2911 antifungal test method, fiber dry method)
Application: renovation / new build
How It Works
The air flow is run thru a plate heat exchanger that recovers the energy of the cooled or warmed up air inside with fresh filtered air from outside, as the fresh air is blown in to the house the energy from the inside air is recovered and will reduce the energy for heating or cooling. With a continuously running AHU the air quality will be high and energy consumption low.
Energy Saving
The features of our ERU energy recovery unit are high efficiency, low energy consumption, low noise level and high reliability. ERU recovers up to 84% of the energy compared with a standard exhaust air ventilation system.
Indoor Air Quality
Afresh and healthy indoor climate is crucial for our health and well-being. Achieving this requires reliable, energy-efficient and sustainable solutions. In any building used by people, the air needs to be circulated and ventilated. The air must be replaced, moved, filtered, and recover the energy.

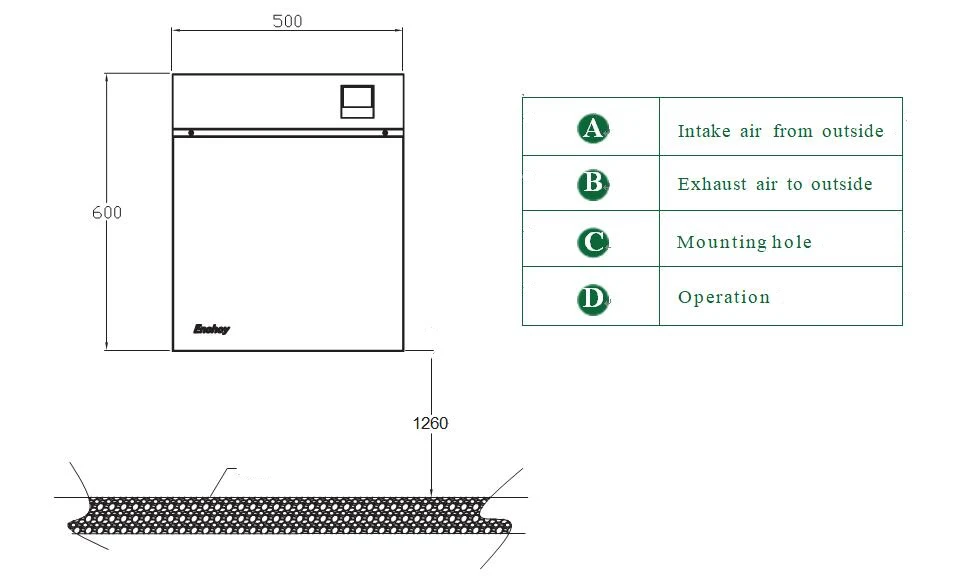

Dimensions (mm)
◆ Here are EFU series (without heat recovery) can be selected.
Our Certificate
