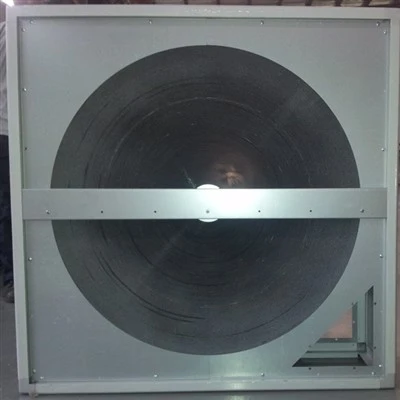

Heat Recovery Wheel
Enchoy:Your Professional Heat Recovery Wheel Manufacturer!
Enchoy (Suzhou) Ventilation System Co., Ltd., a Sino-Finnish joint venture high-tech enterprise, is dedicated to promoting energy-saving and environmental protection concepts and improving living environments. It is a professional ventilation system equipment supplier that integrates research and development, production, testing, sales, and after-sales services. The company introduces leading Finnish manufacturing technology, follows European advanced management concepts and models, and combines domestic market demands to strengthen product research and development and quality control.
Why Choose Us
Our Product
Central fresh air system, haze removal fresh air machine, heat exchange fresh air machine, dehumidifier, humidifier, all-air integrated machine, rotary heat recovery fresh air machine, high-efficiency rotary heat recovery heat exchanger, cabinet-type total heat fresh air machine, constant oxygen total heat fresh air machine, mobile dehumidifier, duct fan.
Our Services
With rich experience and one-to-one service, we can help you choose products and answer technical questions. Provide extended warranty services to extend the equipment warranty period, allowing customers to use the products without worry.
Our Certificate
Enchoy (Suzhou) Ventilation System Co., Ltd. has passed multiple certifications including ISO9001:2015 Quality Management System Certification, ISO14001:2015 Environmental Management System Certification, 3C, and CE. A number of its product series have obtained national patent certificates.
Production Market
Collaborate with well-known decoration companies to create smart home supporting scenarios. Partner with large real estate developers to provide residential standard or value-added services. In the engineering market, provide centralized fresh air solutions for public buildings such as schools, hospitals, and office buildings.
Specification
|
Name |
Heat Recovery Wheel |
|
Material |

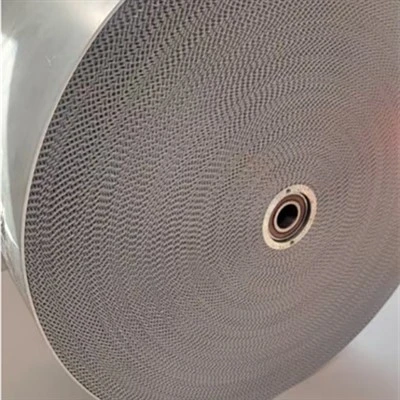

Aluminium with 3A molecular seive |
|
Heat recovery type |
Total heat |
|
Wheel diameter |
500-5000mm |
|
Wheel thickness |
200mm |
|
Net Weight |
42-2100kg |
|
Liquid Flow Rate |
1000-100000CMH |
|
Maximum Working Pressure |
500PA |
Advantages of Heat Recovery Wheel
High efficiency and energy saving
The heat recovery wheel significantly improves the energy efficiency by recovering the heat in the exhaust air. Compared with traditional air conditioning equipment, it can save about 30% of energy. In addition, the thermal efficiency of the heat recovery wheel can usually reach 70% to 90%, further reducing the energy consumption of fresh air heating or cooling.
01
Environmental protection and health
By recovering the heat and humidity in the exhaust air, the energy consumption of fresh air heating or cooling is reduced, thereby reducing pollution to the environment. At the same time, the heat recovery wheel can also filter harmful substances such as bacteria and viruses in the air, improve indoor air quality, and protect people's health.
02
Wide range of application
The heat recovery wheel is suitable for various building types and usage scenarios, such as residential buildings, office buildings, shopping malls, hospitals, etc. It can meet the needs of different places for a comfortable environment, while improving the energy efficiency of the building and reducing operating costs.
03
Compact structure
The wheel design makes the unit occupy less space, which is convenient for integrated use in buildings and air conditioning equipment. This provides more installation options for places with limited space and improves space utilization.
04
Strong durability
Due to the use of corrosion-resistant materials (such as aluminum alloy, galvanized steel, etc.), the heat recovery wheel can also be used for a long time in the exhaust system containing water vapor or corrosive gas, ensuring the stability and reliability of the unit and extending its service life.
05
Commercial buildings:
• Star-rated hotels, high-end office buildings: These places have high requirements for indoor air quality and comfort, and also have high energy consumption. The heat recovery wheel can efficiently recover the heat energy in the exhaust air, reduce the energy consumption of fresh air heating or cooling, and provide high-quality indoor air.
• Large supermarkets and shopping malls: There are dense crowds and large air circulation, and fresh air needs to be continuously introduced to maintain a good shopping environment. The heat recovery wheel can recover the heat energy in the exhaust air while introducing fresh air to achieve energy saving.
• Bus stations, railway stations, and airplane waiting rooms: These transportation hubs are usually large in area and have high personnel mobility, and have high requirements for air quality and temperature control. The heat recovery wheel can meet these needs while reducing energy consumption.
Industrial plants:
• Light industries such as printing machinery, papermaking, and textiles: These industries generate a large amount of waste hot air during the production process, and need to continuously introduce fresh air to maintain the temperature and humidity of the production environment. The heat recovery wheel can recover the heat energy in these waste hot air and reduce the energy consumption of fresh air heating.
• Industries such as pharmaceuticals and food that require strict control of air quality: These industries have strict requirements on indoor air quality to prevent pollution and cross-infection. The heat recovery wheel can save energy while providing high-quality air.
Special environments:
• Hospitals: The temperature, humidity, and air quality in operating rooms, wards, and other areas need to be strictly controlled. The heat recovery wheel can meet these requirements while reducing energy consumption and improving the operating efficiency of the hospital.
• Laboratories: A constant temperature and humidity environment is usually required to ensure the accuracy of experimental results. The heat recovery wheel can provide stable temperature and humidity control while reducing energy consumption.
Other occasions:
• Places that require continuous operation, such as data centers and libraries: These places require 24-hour continuous operation, and the heat recovery wheel can reduce energy consumption and improve operating efficiency by continuously recovering heat energy.
• Places with requirements on noise: Such as schools, libraries, etc., the heat recovery wheel usually has a lower noise level and is suitable for places with strict requirements on noise.
Types Of Heat Recovery Wheels
There are two main types of heat recovery wheels: sensible heat recovery wheels and total heat recovery wheels.

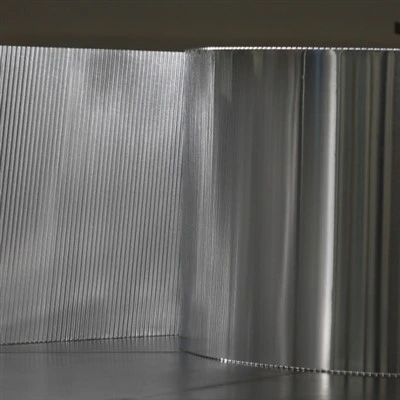

Sensible heat recovery wheels
The material of sensible heat recovery wheels is generally aluminum foil. Its working principle is to achieve heat exchange by passing fresh air and exhaust air through the two semicircles of the wheel in reverse. Sensible heat recovery wheels can only recover heat, not moisture.

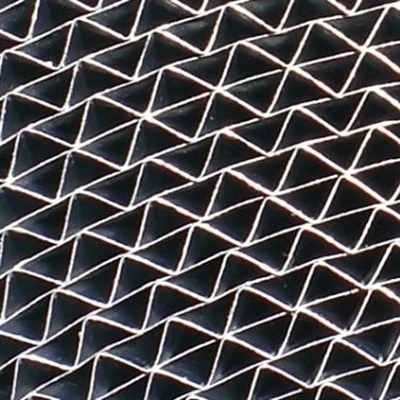

Total heat recovery wheels
The material of the total heat recovery wheel is aluminum foil material or other heat storage and moisture absorption material with a hygroscopic surface. In addition to heat exchange, it can also recover moisture. In addition to heat transfer, the total heat type wheel also has moisture transfer. The partial pressure of water vapor in the exhaust air is higher than the partial pressure of the coating on the surface of the heat storage core. The water vapor is adsorbed by the coating. When the wheel rotates to the fresh air side, the water vapor is transferred to the fresh air.
Working Principle Of Heat Recovery Wheel
The working principle of heat recovery wheel mainly includes the following aspects:
Basic working principle
The heat recovery wheel realizes the exchange of heat and humidity through the rotating heat storage body. The exhaust air in the room is discharged to the outside through the upper part of the wheel, and the fresh air outside enters the room through the lower part of the wheel. In this process, the exhaust air transfers heat and moisture to the heat storage body of the wheel, and the fresh air absorbs these heat and moisture from the heat storage body, thereby realizing preheating and humidification (winter) or precooling and dehumidification (summer).
Energy exchange process
The heat recovery wheel uses the temperature difference and water vapor partial pressure difference between the fresh air and the exhaust air to exchange moisture and heat. The motor drives the wheel to rotate slowly through a chain or belt, and the air passes through the heat storage body at a low speed, thereby realizing efficient energy recovery.
Full heat recovery efficiency
The full heat recovery wheel can not only recover sensible heat (temperature load), but also recover latent heat (humidity load). In China, latent heat load in fresh air accounts for the vast majority (more than 70%), so full heat recovery is particularly important. Full heat recovery efficiency is defined as the weighted average of sensible heat efficiency and latent heat efficiency.
Packaging and Shipping
Our Certificate
FAQ
As one of the leading heat recovery wheel manufacturers and suppliers in China, we warmly welcome you to buy discount heat recovery wheel for sale here from our factory. Good service and quality products are available.
