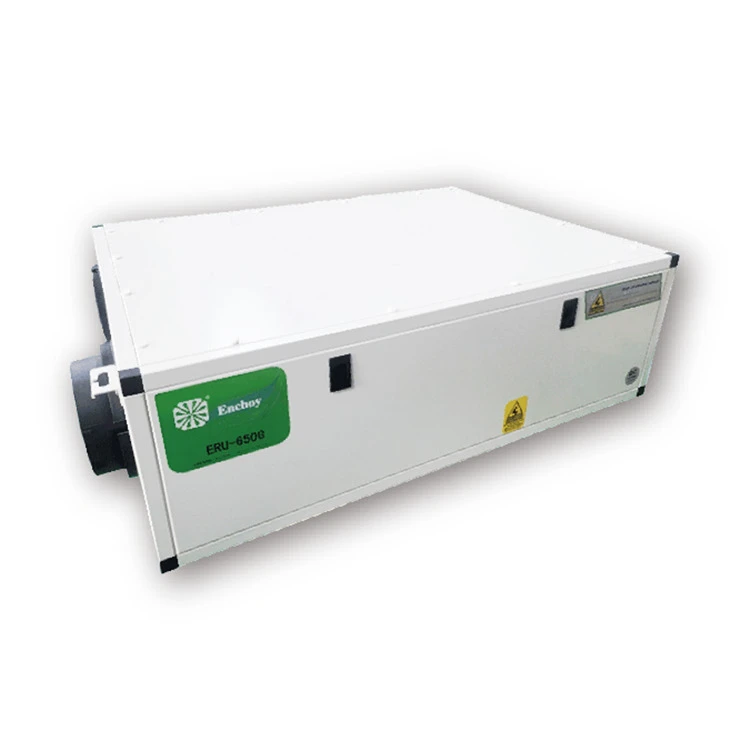

● Optional Models: ERU-650G
● Maximum Airflow: 650m3/h
● Ceiling-mounted two-way flow fresh air fan adopts modular design, with abundant optional functions.
● The profile frame of the whole machine is designed and the appearance is baked enamel, integrating safety, fastness, conciseness and aesthetics; Heat exchange core, triple filter (primary / medium / high), AC wide impeller high air volume fan.
● Modules such as fresh air preheating, fresh air sterilization and high-efficiency purification can be added, and equipped with DC or EC fan.
● The configuration of graphene core can be improved, which is better conducive to energy conversion.
● Unique large space design inside, comfortable air flow.
● Double-inlet wide impeller fan with low noise; The air outlet of exhaust fan is equipped with air valve to effectively prevent foreign matter from entering.
● Three-gear speed regulation, smart phone APP intelligent remote control, convenient for your life.

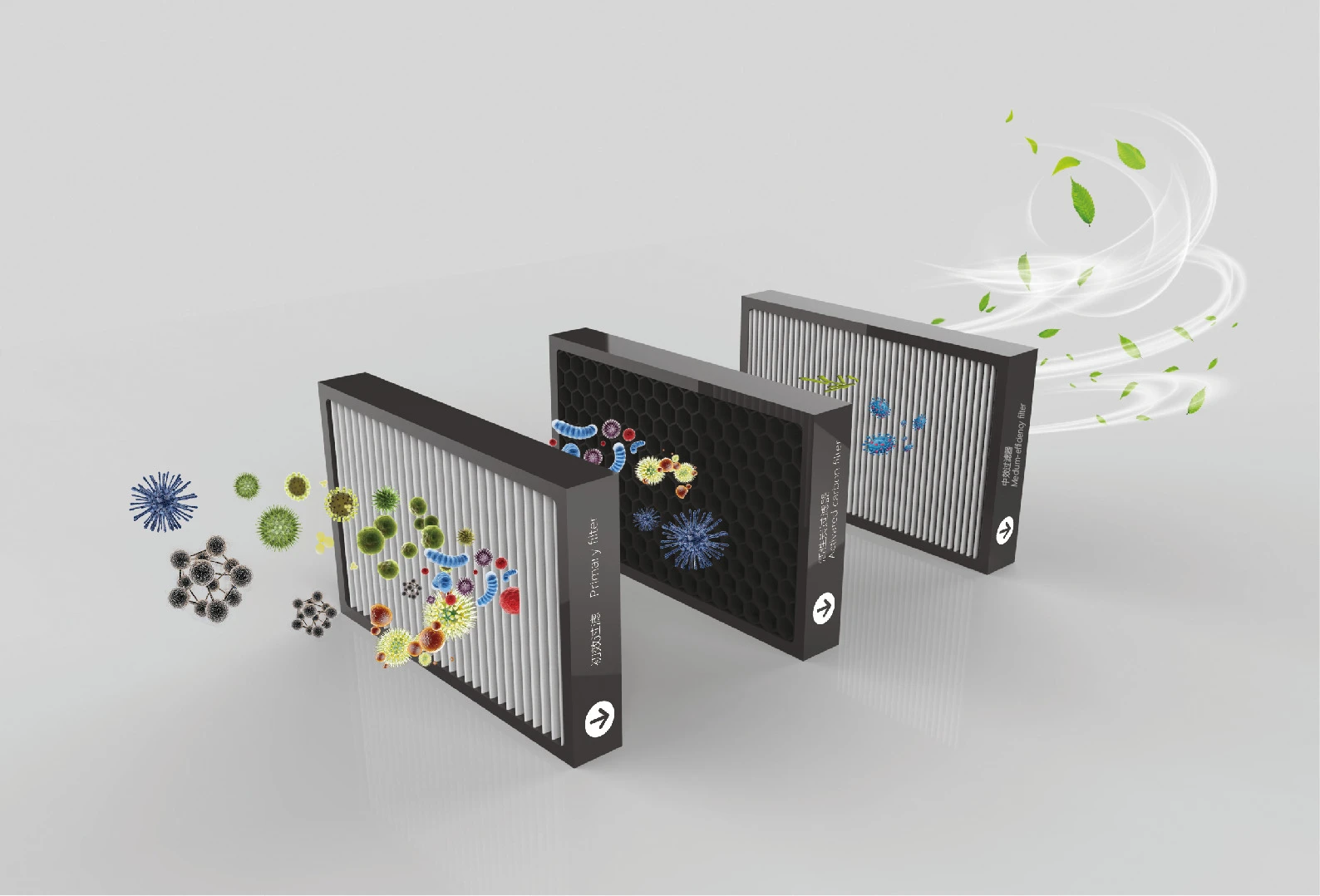

Primary Filter
The outer frame is made of a specially designed composite elastic material, offering superior sealing performance compared to plastic frames. The smooth and frictionless pull-out design further prevents airborne particles from passing through gaps. It effectively filters dust, debris, hair, and other particulate matter from the air, ensuring cleaner and healthier ventilation.
Medium-efficiency Filter
The outer frame is crafted from a specially designed composite elastic material, offering sealing performance far superior to that of plastic frames. Its smooth, frictionless pull-out design ensures ease of use while effectively preventing airborne particles from passing through gaps. The filter efficiently removes dust, bacteria, and other harmful substances from the air, achieving a filtration efficiency of over 95%.
Activated Carbon Filter
The outer frame is made of a specially designed composite elastic material, providing superior sealing performance compared to plastic frames. Its smooth, frictionless pull-out design ensures ease of use while effectively adsorbing harmful substances in the air, such as formaldehyde, benzene compounds, ammonia, radon, and TVOCs, promoting a healthier indoor environment.

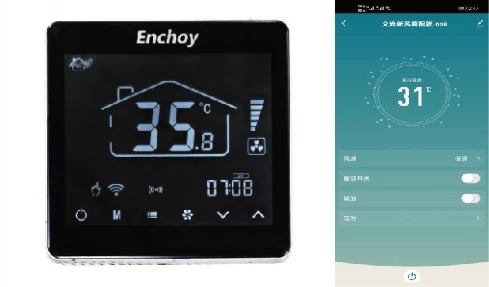

LCD Control Panel for Enhanced User Interaction
Provides an intuitive and user-friendly interface for seamless operation.
Independent Adjustment of Fresh Air and Return Air Speeds
Allows precise control of airflow rates to optimize ventilation efficiency.
Display of Indoor Temperature, Air Quality, and CO2 Levels (Optional)
Real-time monitoring of indoor environment parameters for better air quality management.
Automatic and Manual Mode Adjustment
Offers flexibility to switch between automatic and manual operation modes based on user preference.
APP Remote Control Function
Enables remote operation and monitoring via a mobile app for convenience.
Filter Replacement and Equipment Fault Alerts
Notifies users when maintenance or troubleshooting is required, ensuring reliable performance.
Pre-Reserved Smart Home Integration Interface
Compatible with smart home systems, allowing for seamless integration and advanced automation.

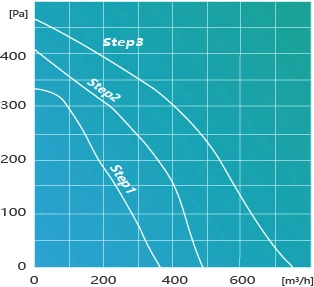

ERU-650G P-Q Performance Curve
|
Model |
ERU-650G |
||
|
Power Supply (V/Hz) |
220/50 |
||
|
CDR (m3/h≥) |
350 |
||
|
Overall dimensions (mm) |
850*700*260 |
||
|
Interface Size (mm) |
φ160 |
||
|
Usable Area (m2) |
70~150 |
||
|
Weight (Kg) |
35 |
||
|
Air Volume (m3/h) |
High |
Medium |
Low |
|
650 |
480 |
380 |
|
|
Power (W) |
384 |
317 |
243 |
|
Noise (dB) |
48 |
45 |
40 |
